Conformal Coating AOI

Conformal Coating AOI ( UV series)

V22XUV-350L / U22XUV-650L / D22XUV-350L / D22VUV-550L
V22XUV-350   / V22XUV-520
T22XUV-350   / T22XUV-550

Profuse lineup of 3 types and 8 models, Inline type, Desktop type, and Unit type

YouTube Video

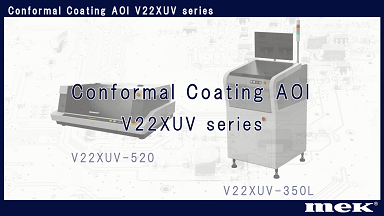

Thum_UV_e


Features


Component inspection and conformal coating inspection with one AOI
White lighting is for component inspection and fiducial recognition.
UV lighting is for conformal coating inspection.
Inspection is possible depend on inspection target by switching UV lighting and
white lighting.

white lighting   UV lighting

Switchable
UV照明



1   Detect coating coverage non-coverage and splash

  - coating coverage/non-coverage


  - Splash
  スルーホール1  arrow02.png
Through-hole
スルーホール2
  コネクタ1arrow02.pngコネクタ2
  Connector

  - Component Inspection / Polarity
Polarity



2   Easy recognition of component and coated area
with panoramic view

  Acquire the image for easier recognition of components and non-coating area by illuminating UV lighting and white lighting at the same time.
   UVpcb_img02  arrow02.png UVpcb_img02




3   Barcode reading

  ■ Sending inspection result to Catch System
■ Possible to assign inspection result
   QRコード データマトリクス  マイクロQRコード
  QR code
( Model 2 )
 Data matrix
( Conform to ECC200 )
 Micro QR code
    コード39
  Code 39
  Code 128
  interleaved 2o5
  Interleaved 2 of 5



Type of 2D code
22X software support
(Standard)
Smart Barcode Add-in
(Optional)
QR code (Model 2)
OK OK
Datamatrix
(Conform to ECC200)

OK OK
Code 39 OK OK
Code 128 OK OK
Interleaved 2 of 5 NG OK
Micro QR code
NG OK



4   Catch System (Optional)




Catch System collects every information from AOI, and establishes the traceability in the production control



Store the inspection result to the database, and possible to confirm the image data.
Possible to improve the production quality by grasping the operation status of each AOI in production line, and by collecting and analyzing the accumulated data.
*Another, Windows PC is required for Catch System




5   Off Line Teaching (Optional)

  Create inspection data without stopping AOI

Possible to create inspection data by off-line, with same screen image of AOI.
Debugging operation is possible with OLT by saving NG image right after the inspection.
Suitable to make use for internal training.
* Another Mac PC which has equivalent spec. with AOI PC is required for OLT
  V22X-350L  OLT-UV.png

OLT
(Off Line Teaching)


Inline type

Dual-side model Features of 2 inspection machines are in one model for efficient inspection.
Auto shutter doors at conveyer entrance and exit prevent the leaking of UV lighting from bottom inspection unit.

 D22XUV-350L  D22XUV-550L   Possible to inspect in parallel without the interference of lighting in opposite face.
 Standard model Speedy inspection with wide range of view. Standard model for inline type.
Support large PCB maximum size up to 650x550mm.

 V22XUV-350L  U22XUV-650L Common
to all models
#Camera         5Mega pixel camera
#Lens              Macro lens
#Field of View  46×38mm (19μm)


Desktop type

Desktop type model which contains same inspection unit and algorithm as inline type.
V22XUV-520 can handle maximum PCB size up to 520x460mm. Area sensor is mounted at PCB eject position as standard.

V22XUV-350
Area sensor (Optional)
Speedy inspection by camera moving in X axis and PCB moving in Y axis.


V22XUV-520
Area sensor (Standard feature)
Inspection by camera moving in XY axis with PCB fixed.


Unit type

Inspection unit can be integrated to top/bottom or both for conveyer construction which allows to build the production facility for each application.
Support USER I/O interface as standard, and possible to output OK/NG signal of inspection result and operation instruction such as inspection start.

Top inspection
Conveyer construction example

T22XUV-350


T22XUV-550


Specification

  Inline type
  D22XUV-350L
model V22XUV-350L U22XUV-650L D22XUV-350L D22XUV-550L
External
Dimension
(mm)
W698
D800
H1298 *3
W1070
D1167
H1328 *3
W888
D880
H1312 *3
W1088
D1202
H1331 *3
Weight 210kg 240kg 260kg 400kg
Power
Supply
AC100V ~ 240V
Power
Consumption
350W(Including PC) 700W(Including PC)
Motor Servo Motor ×3
Servo Motor ×3
Servo Motor ×6 Servo Motor ×6
Max. Speed
XY
720mm/sec 720mm/sec 720mm/sec 720mm/sec
Z axis※1 Default Default Default Default
PCB Size
(mm)
Mini:  50x50
Max:350x250
Mini:  50x50
Max:650x550
Min:  50x50
Max:350x250
Min:  50x50
Max:550x550
PCB Fixing
Method
By Clamping By Clamping PCB Top Clamping PCB Top Clamping
PCB
Thickness
0.6 ~ 2.0mm 0.6 ~ 2.0mm  Min:0.6mm ~
Min:0.6mm ~
 PCB Weight 1 kg 1 kg 2 kg  2 kg
 Clearance   Top   : 60mm
Bottom: 60mm
  Top   : 60mm
Bottom: 35mm
  Top   : 60mm
Bottom: 35mm
  Top   : 70mm
Bottom: 70mm
Auto
shutter
door
Optional - Defult Default
Conveyer
Speed
10 - 500mm/sec
Cameras 5 M
Main Lens Macro lens 19μm
Field
of View
 46 × 38mm
Lighting
System
 White + UV lighting
Inspection
Algorithm
Pattern Matching / Histogram / Color Matching
Inspection
Targets
SMD and THT
Inspection
Items
Coating coverage and non-coverage・Splash・Component presence/absence・Component displacement (X, Y,θ)・Polarity・Text・Scratch
Operating
Environment
15-30°C   15-80%RH
*1 …Stroke 30mm (+28, -2mm)
*2…H360mm including calibration plate
*3…H2000mm including signal tower light

Please note that above specification is subject to change without notice.
Please be sure to confirm the updated specification at the time of purchase.

  Desktop Type Unit type
    V22XUV-520
Model V22XUV-350 V22XUV-520 T22XUV-350 T22XUV-550
External Dimension
(mm)
W760
D860
H450
W1030
D1060
H  410
W700
D880
H316 ※2
W 900
D1080
H316 ※2
Weight 45kg 95kg 50kg 75kg
Power Consumption 350W(Including PC) 350W(Including PC)
Motor Servo Motor ×2
Servo Motor ×3 Servo Motor ×3 Servo Motor ×3
Max.
Speed XY
720mm/sec 720mm/sec 720mm/sec 720mm/sec
Z axis *1 Optional Default Default Default
PCB Size
(mm)
Min:  50 × 50
Max: 350×250
Min:  50 × 50
Max: 520×460
Max: 350 × 260 Max: 550 × 460
PCB Fixing Method PCB Top Clamping PCB Top Clamping - -
 PCB
Thickness
Min: 0.6mm ~ Min: 0.6mm ~ - -
  PCB Weight 1.5 kg  2 kg - -
Clearance   Top   : 60mm
Bottom: 70mm
  Top   : 60mm
Bottom: 70mm
Component Clearance: 60mm Component Clearance: 60mm
Power Supply AC100 - V240V
Cameras 5 Mega pixel top camera
Main Lens Macro lens 19μm
Field
of View
 46 × 38mm
Lighting
System
White + UV lighting
Inspection
Algorithm
Pattern Matching / Histogram / Color Matching
Inspection
Targets
SMD and THT
Inspection
Items
Coating coverage and non-coverage・Splash・Component presence/absence・Component displacement (X,Y,θ)・Polarity・Text・Scratch
Operating
Environment
 15-30°C  15-80%RH
※1…Stroke 30mm (+28, -2mm)
※2…H360mm including calibration plate
※※3…H2000mm including signal tower light

Please note that above specification is subject to change without notice.
Please be sure to confirm the updated specification at the time of purchase.
