Circuit board cleaner
PCB Cleaner
Product Introduction
- No manual brushing required
- Reduces the time required to use adhesive rollers multiple times
- Can be installed on existing conveyors, no need to change the line configuration
- Dust removal possible after laser marking (CO2 method)

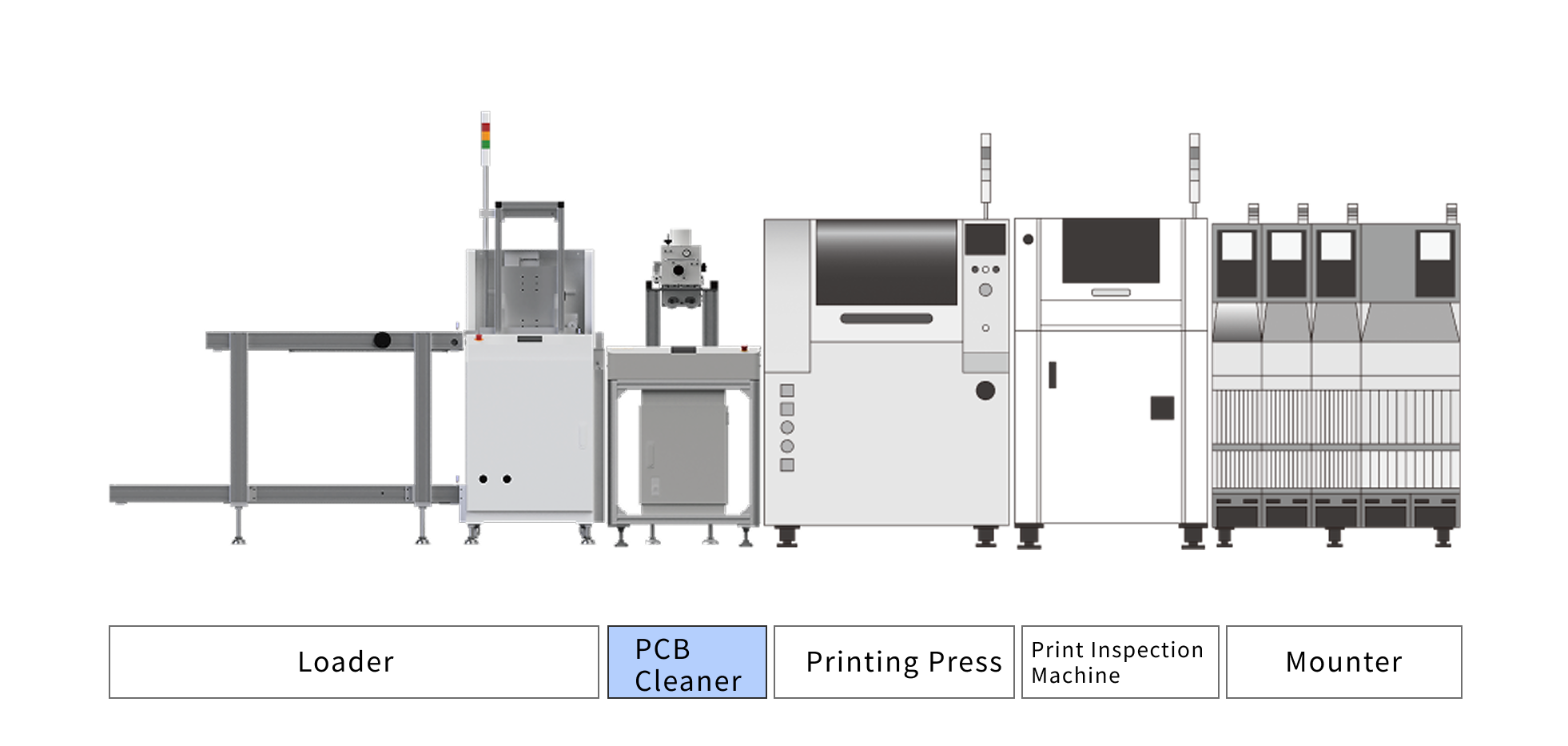

Operational image
With the introduction of a circuit board cleaner,
Preventing problems caused by foreign objects
Foreign matter (dust, fibers, oxide film, etc.) on the mounting line can cause poor soldering and appearance, resulting in lower yields and increased rework.
Our circuit board cleaners reliably clean the circuit board surface during transport and remove foreign matter before assembly, significantly contributing to the stabilization of assembly quality.
Features
Features 01
Removes foreign matter using a static-removing brush roller
Two anti-static brush rollers scrape up foreign matter and send it to the dust collector through the upper duct.The brush body is easy to remove and attach, so anyone can perform regular cleaning and replacement maintenance.
Features 02
Ionizers remove static electricity to prevent re-adhesion.
It automatically removes static electricity when a board passes through, preventing foreign matter from re-adhering and contributing to making the board harmless.
Features 03
Compact dust collector
Compact yet powerful suction.
Size: L380mm x W326mm x H382mm Power supply: AC100V
OPTION
If you want to install a circuit board cleaner on an existing intermediate conveyor,
An optional guide unit is available for sale.
It has a compact design that allows it to be installed across a conveyor.
Guide Unit
If there is no installation space on the printing machine side, we can also manufacture guide/line attachments etc.
Specification.
PCB-Cleaner-01-M
|
PCB-Cleaner-01-L
|
|
External dimensions | W550 D150 H190 mm | W840 D150 H190 mm |
Body weight | 10.5 kg | 15 kg |
Power | AC 100 V (200 V compatible) | AC 100 V (200 V compatible) |
Applicable board size | 350 x 250 mm | 520 x 460 mm |
Power | 25.1 W | 25.1 W |
Cleaning Range | Entire board | Entire board |
Height adjustment range | 0～50mm | 0～50mm |
rotating brush | Anti-static brush x 2 | Anti-static brush x 2 |
Brush Dimensions | 60φ x 250 mm | 60φ x 460 mm |
brush type | Non-electronic type channel roll | Non-electronic type channel roll |
