Laser Marker Device
LMX Series
Improved on-site environment through reduced dust
Reduced maintenance costs
Product Introduction
- Unique product information is printed and linked to manufacturing history, inspection results, and shipping information
- Double-sided printing possible by flipping the board
- Equipped with a camera for position correction and pre- and post-printing inspection functions
- Simple teaching reduces work time
- Batch printing area: 330 x 330 mm (M/L size)
Printing examples
Here is an example of what can be inspected with this device. We also accept requests for verification using sample boards.

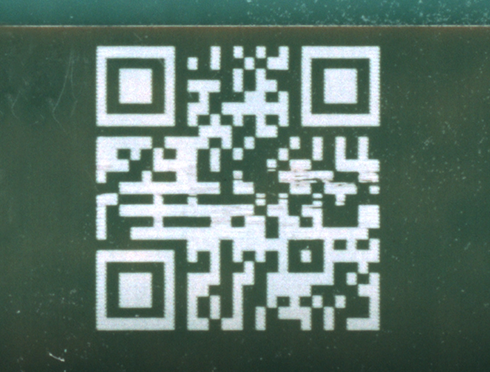

Mounting board

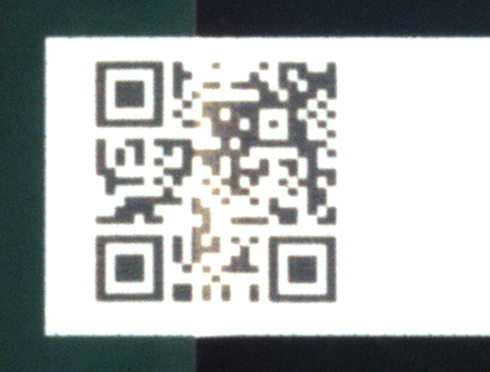

Silkscreen printing

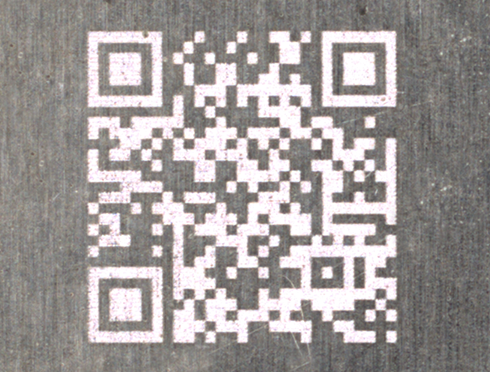

Printing on metal surfaces
Laser marker features
Features 01
Improved on-site environment due to reduced dust (when equipped with UV laser)
UV lasers are damage-free and generate significantly less dust during marking, which has the advantage of improving the on-site environment compared to CO2 lasers, eliminating the need for high-performance dust collectors. This also reduces the frequency of filter replacement for dust collectors, reducing maintenance costs.
Features 02
Equipped with inspection function using high-resolution images from camera and lighting unit
Equipped with an 8 megapixel camera and white lighting, it allows for easy marking settings based on high-quality images of the entire board.
It is equipped with various functions that use the camera, such as double printing check before printing and reading test after printing.
Features 03
Prevents mistakes by position correction, face recognition, and setting direction confirmation
It is possible to check the surface recognition function and board setting direction using images.
Before laser marking, the reference mark is recognized and the position is corrected, preventing misalignment of the marking position.
Features 04
Double-sided printing possible by flipping the board
The board flipping mechanism is configured to rotate in the center directly under the laser, and after printing on one side, the board is flipped over and laser printed on the back side.
When ejecting the board, you can specify which side should be ejected as the top.
Features 05
Easy Teaching
Free operation like an appearance inspection machine. Camera movement and print position specification can be easily set by dragging the mouse.
Printing conditions are stored in a library, significantly reducing teaching time. Furthermore, the touch panel compatibility improves workability and efficiency on-site.
It is equipped with a function that allows you to read coordinates from the board design data and specify the printing position.
OPTION
We offer options to help you get the most out of your inspection operations.
Please use this to reduce man-hours and improve quality.
Offline Teaching
Inspection data can be created without stopping the inspection equipment. Inspection data can be created offline on the same screen as the inspection equipment.
Immediately after inspection, defective images are automatically saved, allowing debugging work to be performed on the OLT (not applicable to the X02W).
It can also be used for in-house training purposes.
*A separate PC equivalent to the inspection machine is required.

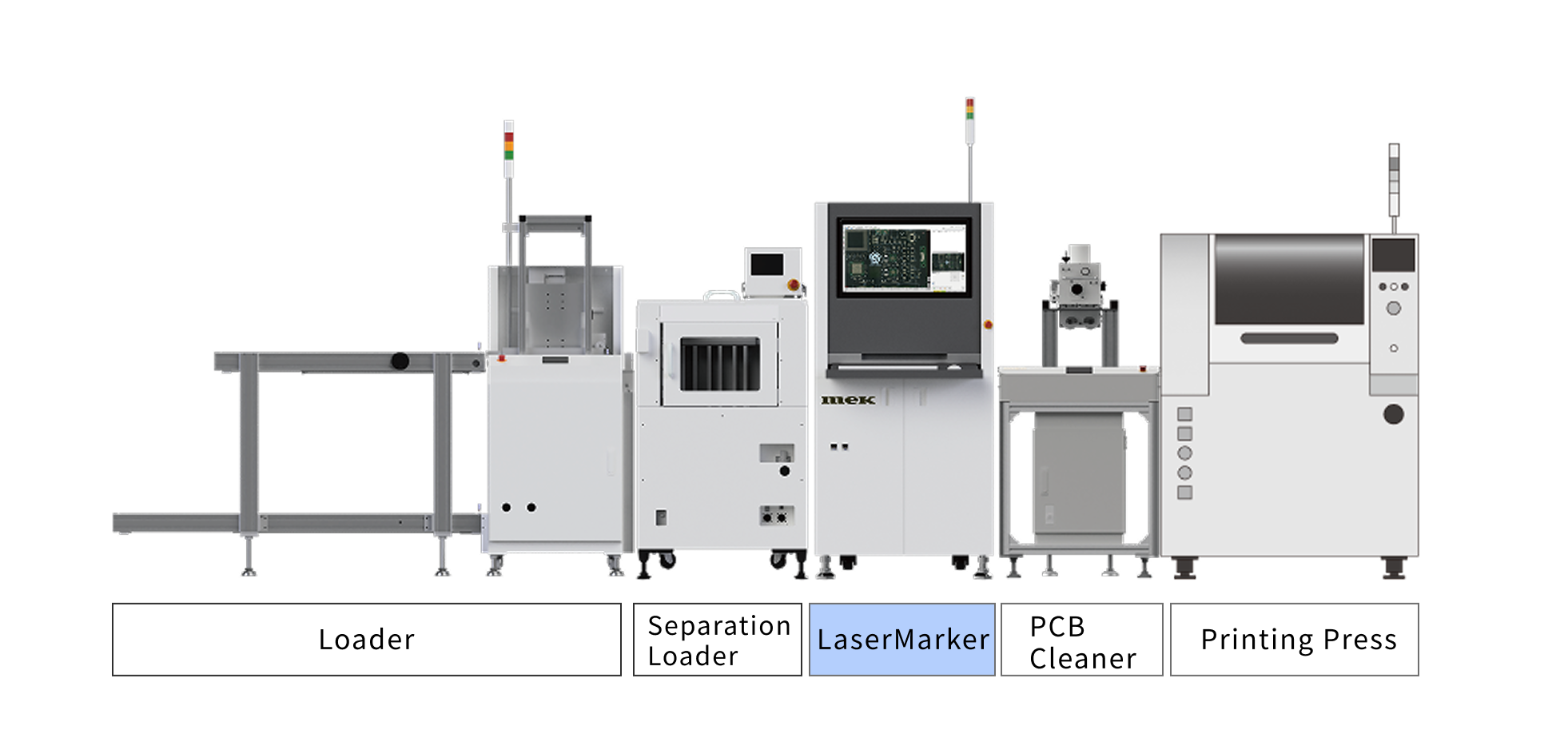

Laser marker operation image
High precision and stable quality
By incorporating a high-precision, high-speed laser marker into the line, real-time marking (printing) can be achieved within the manufacturing process. In conjunction with our separate loader, this reduces the man-hours required for setting up circuit boards. This saves manpower and improves efficiency, significantly reducing the burden on the workplace.
Laser marker specifications
LMXR-350L
|
LMXR-510L
|
|
External dimensions | W800 D1200 H1700 mm | W1060 D1450 H1700 mm |
Body weight | 500 kg | 700 kg |
Power | Main unit: Single-phase AC 200 V - 240 V Peripheral equipment (laser, PC, monitor): AC 100 V | Main unit: Single-phase AC 200 V - 240 V Peripheral equipment (laser, PC, monitor): AC 100 V |
Applicable board size | Mini: 80 x 50 mm Max: 350 x 250 mm | Mini: 120 x 50 mm Max: 510 x 460 mm |
Board Weight | Max: 2.0 kg | Max: 2.0 kg |
Implementation Limitations | Top surface 30 mm, bottom surface 30 mm | Top surface 30 mm, bottom surface 30 mm |
Camera | 8 Mega pixel top camera | 8 Mega pixel top camera |
Light | white LED | white LED |
Power | Approximately 1000 W (including PC) | Approximately 1600W (including PC) |
Conveyor Speed | 10-500 mm/sec | 10-500 mm/sec |
Board fixing method | Width direction side clinch + top surface hold | Width-wise side clinch |
Inspection target board thickness | 0.6 to 3.0 mm (*Custom orders for 3 mm or more) | 0.6 to 3.0 mm (*Custom orders for 3 mm or more) |
Air | 0.4 MPa | 0.4 MPa |
laser | UV laser | UV laser |
Types | UV: UV(YV04) 2.5 W forced air cooling | UV: UV(YV04) 2.5 W forced air cooling |
wavelength | UV: 0.355 μm | UV: 0.355 μm |
Classes | UV: Class 4 | UV: Class 4 |
Spot size | UV: 0.01 mm | UV: 0.01 mm |
Minimum barcode print size | 2D code: cell size 0.1 mm QR code: 16 characters or less, 0.21 mm in length and width Data matrix: 9 characters, 0.16mm length and width | 2D code: cell size 0.1 mm QR code: 16 characters or less, 0.21 mm in length and width Data matrix: 9 characters, 0.16mm length and width |
Inspection item | Face recognition and printing content (1D, 2D codes, numbers, English letters) | Face recognition and printing content (1D, 2D codes, numbers, English letters) |
Dust collector | Various selections | Various selections |
