Transport Equipment
Conveyors
Automatic setup is possible by connecting with Marantz Electronics products
Product Introduction
This conveying equipment is essential for mounting lines. It can be introduced for a variety of purposes, including SMT lines, DIP lines, and batch production.
Furthermore, it can be connected to inspection machines, laser markers, and circuit board cleaners manufactured by Marantz Electronics, enabling automated setup changes.
*Customization available
*The appearance and specifications may be subject to change without notice for improvement purposes.
Please be aware that there are
Loader MEL
Unloader MEU
Intermediate conveyor MCV
Worker conveyor MCV
Separate Loader MED
Product
Product 01
Model: MEL loader
The pusher feeds out the circuit boards set in the magazine one by one.
You can also contact me directly.
Compatible sizes: M/L/ML
| Model | Compatible board size/thickness |
|---|---|
| MEL-350 | 350 x 250 mm / board thickness 0.4 to 3 mm |
| MEL-510 | 510 x 460 mm / board thickness 0.4 to 3 mm |
| MEL-350-510 (ML common use) | 510 x 460 mm / board thickness 0.4 to 3 mm |
Product 02

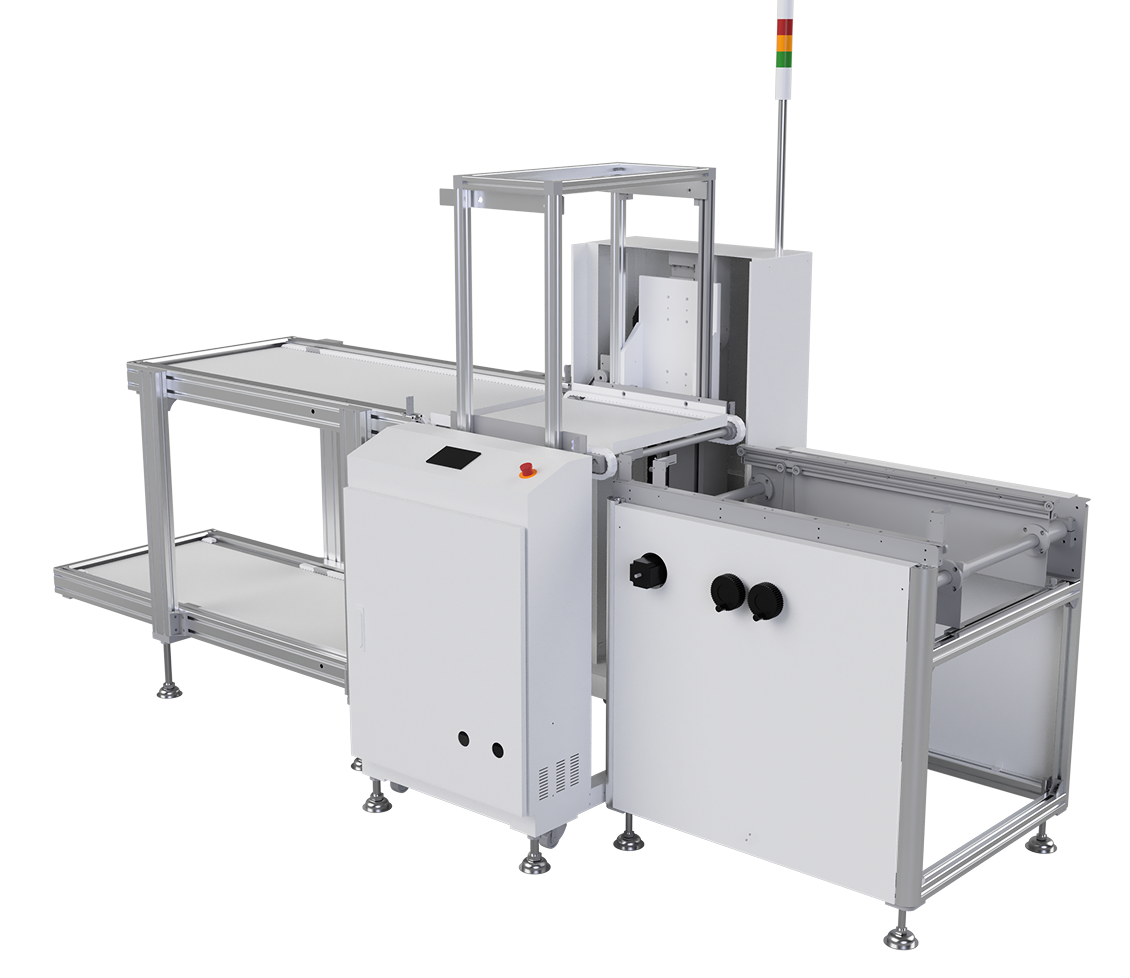

Model: MEU unloader
Boards flowing from the upstream equipment are stored one by one in the magazine rack.
You can also contact me directly.
Compatible sizes: M/L/ML
| Model | Compatible board size/thickness |
|---|---|
| MEU-350 | 350 x 250 mm / board thickness 0.4 to 3 mm |
| MEU-510 | 510 x 460 mm / board thickness 0.4 to 3 mm |
| MEU-350-510 (ML common use) | 510 x 460 mm / board thickness 0.4 to 3 mm |
Product 03

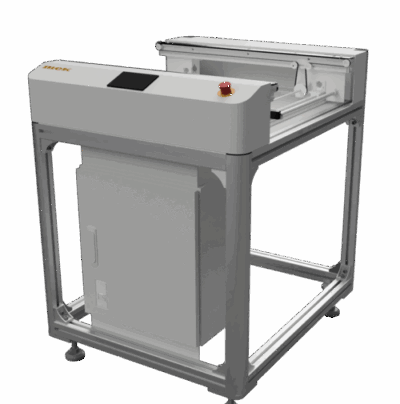

Model: MCV intermediate conveyor
An intermediate conveyor with a simple design.
Automatic changeover of conveyor width is possible in conjunction with the inspection machine, contributing to shortening the time required for changeover.
Compatible sizes: M size/L size/LL size
| Model | Compatible board size/thickness |
|---|---|
| MCV-350 | 350 x 250 mm / board thickness 0.4 to 3 mm |
| MCV-510 | 510 x 460 mm / board thickness 0.4 to 3 mm |
| MCV-650 | 650 x 550 mm / board thickness 0.4 to 3 mm |
Product 04

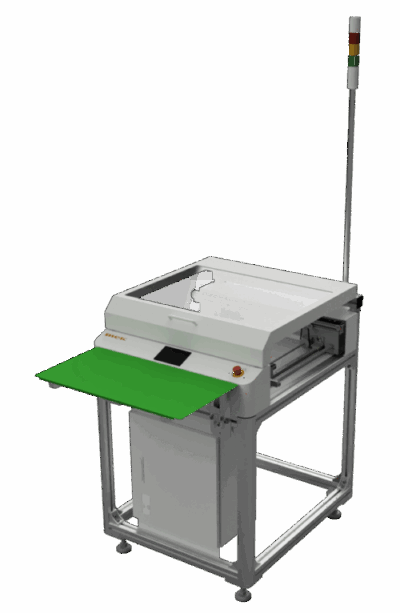

Model: MCV Worker conveyor
Equipped with an openable work table in front of the conveyor, it receives a signal from the inspection machine and stops the defective board on the work conveyor, allowing you to check for defective boards.
For example, it can be installed before reflow, and any mounting defects detected by the inspection machine can be visually confirmed and repaired on the spot. Equipped with a safety cover (with interlock) and a patrol light.
Compatible sizes: M size/L size/LL size
| Model | Compatible board size/thickness |
|---|---|
| CV-350 | 350 x 250 mm / board thickness 0.4 to 3 mm |
| CV-510 | 510 x 460 mm / board thickness 0.4 to 3 mm |
| CV-650 | 650 x 550 mm / board thickness 0.4 to 3 mm |
Product 05

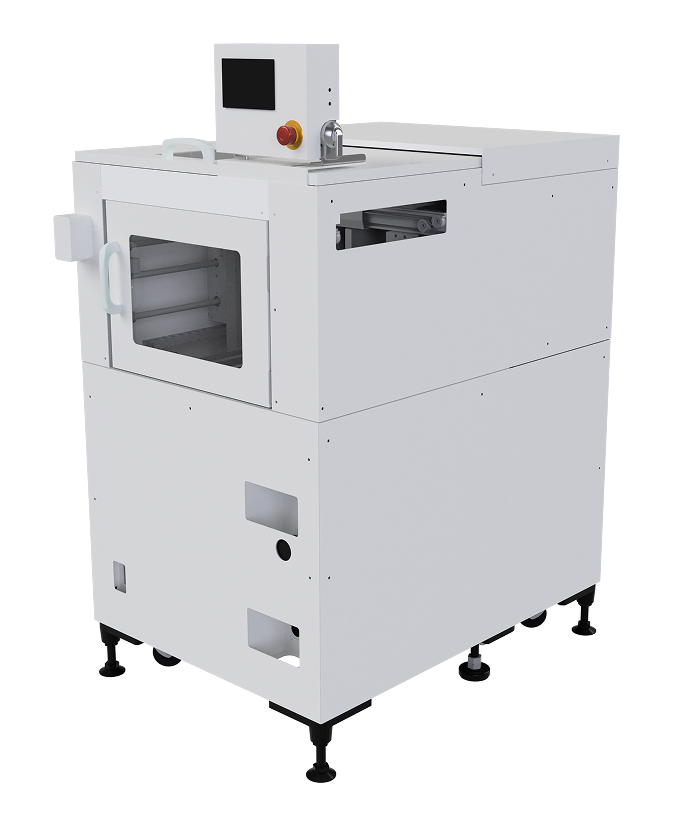

Model: MED Separate Loader
This is a compact separate loader that allows bare boards to be directly stacked.
Since it uses an elevator system instead of a suction pad, there is no need to adjust the position of the suction pad, which contributes to shortening work time.
It can be used in conjunction with a loader in pass mode.
Compatible sizes: M size/L size
| Model | Compatible board size/thickness |
|---|---|
| MED-350 | 350 x 250 mm / board thickness 0.5 to 3 mm |
| MED-510 | 510 x 460 mm / board thickness 0.5 to 3 mm |
Operational image

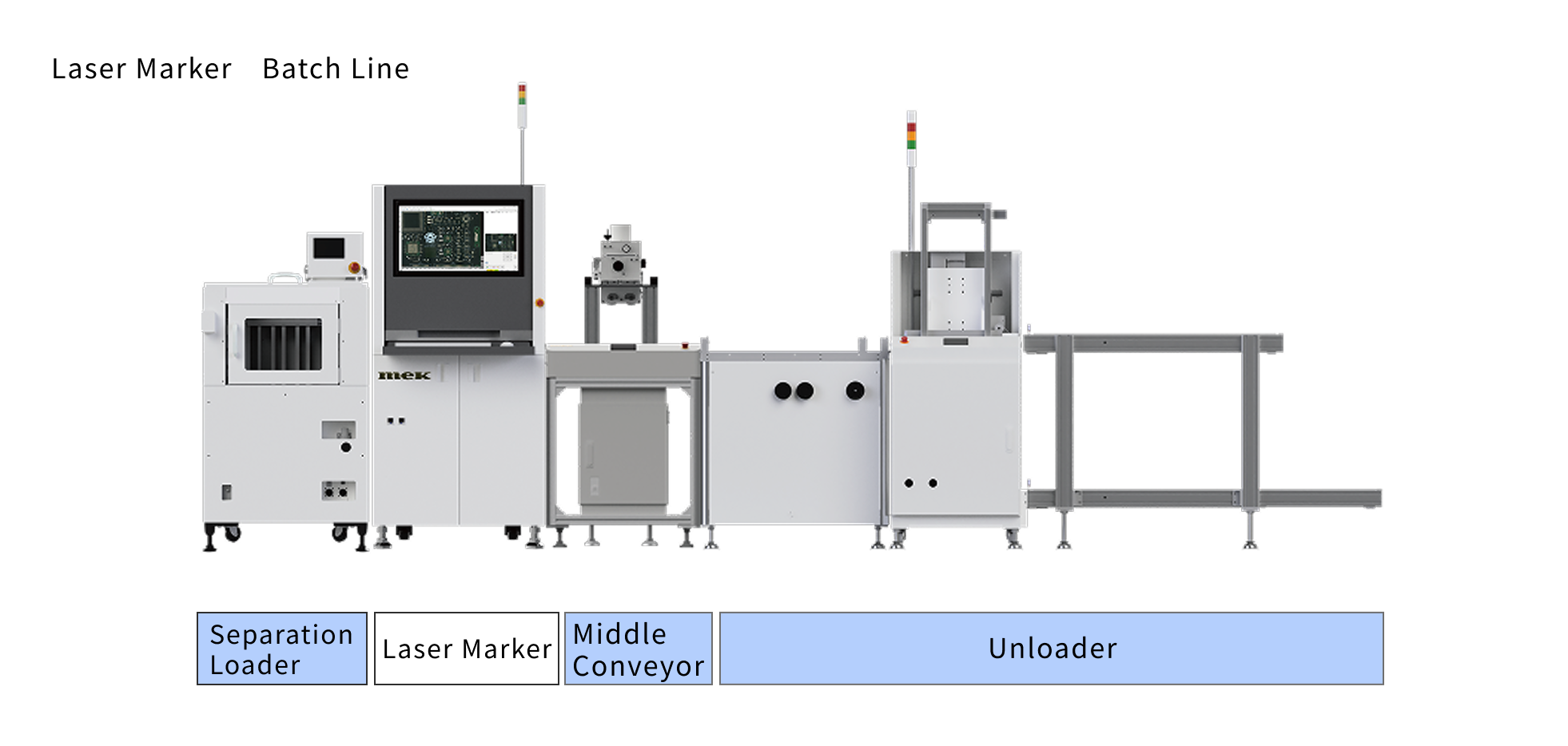

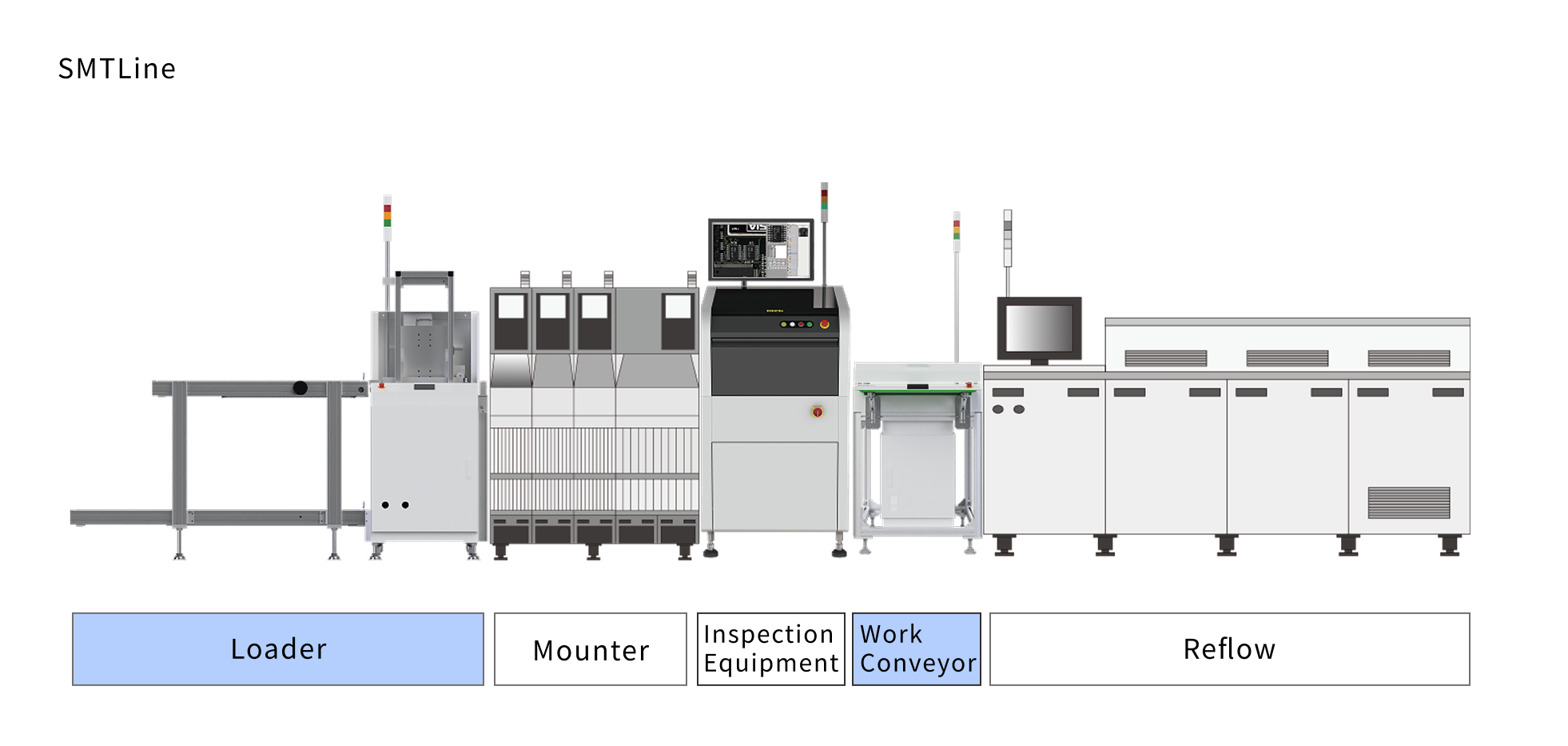

Smooth integration with inspection machines
Our conveyor solutions achieve optimal integration with inspection equipment. They automate everything from product transport to setup changes, reducing the burden on workers and contributing to improved throughput of the entire inspection line. It is also possible to operate a traceability system by identifying boards on the conveyor (by reading barcodes and QR codes), automatically switching inspection programs, and linking inspection results.
