Bottom full 3D

X02W Series

  • Autonomous offline
  • Inline types
Specialized for DIP solder inspection, measuring fillet volume
  • DIP
  • Inline types
  • Autonomous offline
  • 3D
  • Underside inspection
PCB appearance inspection device, bottom surface full 3D inspection device X02W series
  • DIP
  • Inline types
  • Autonomous offline
  • 3D
  • Underside inspection
Autonomous offline
X02WB-350
Inline types
X02WB-550L
PRODUCT

Product Introduction

  • Acquires low-noise 3D images for stable inspection
  • Measures fillet volume to detect excess or insufficient solder
  • PIN height defects (horns and part lift) can be detected by PIN length measurement
  • Height measurement for part presence and foreign object inspection
  • Establish traceability of inspection results by introducing the CatchSystem (optional)
CASE

Inspection Examples

Here is an example of what can be inspected with this device. We also accept requests for verification using sample boards.

Circuit board visual inspection equipment Inspection items Excessive solder (3D)
(CASE 01)

Excessive solder

Circuit board visual inspection equipment Inspection items Insufficient solder (3D)
(CASE 02)

Insufficient solder

Circuit board visual inspection equipment Inspection items Bridge (3D)
(CASE 03)

bridge

Circuit board visual inspection equipment Inspection items PIN height abnormality (3D)
(CASE 04)

PIN height abnormality

Circuit board visual inspection equipment Inspection items Missing parts (3D)
(CASE 05)

Out of stock

Substrate visual inspection equipment Inspection items Foreign matter (3D)
(CASE 06)

foreign body

LINE UP

Autonomous offline

As it is a stand-alone type, there is no need to set up a table, and all PC equipment is built into the device.
An area sensor (optional automatic door) is installed at the board set entrance to ensure safety during inspection.

  • With a top clearance of 150 mm (when using an area sensor), it is not affected by the height of the inserted components.
  • Inspection after board separation is also possible
  • The dedicated rail jig for PCBs allows flexible PCB setting.
  • M-size board compatible, inspection range 350 x 250 mm
PCB appearance inspection device, bottom surface full 3D inspection device X02W seriesX02WB-350

Inline types

By incorporating it into the DIP line and automating it, labor savings are realized.
After in-line selective soldering, inspection is possible without the need for a reversing machine.

  • Inline operation possible while maintaining offline inspection performance
  • L-size board compatible, inspection range 550 x 550 mm
PCB appearance inspection device, bottom surface full 3D inspection device X02W seriesX02WB-550L
FEATURES

Features

Features 01

Low-noise 3D images

It faithfully reproduces the actual solder fillet, reduces lighting reflections, and improves the visibility of DIP solder.

Actual image of lighting reflection from board appearance inspection equipment
Circuit board appearance inspection device 3D image of lighting reflection

Features 02

Easy teaching

By quantifying the fillet volume, anyone can easily set up an inspection program.
It can accurately detect fillets and bridges that are difficult to detect with 2D inspection, such as subtle excess or deficiency of solder.

PCB visual inspection equipment Solder volume setting
PCB appearance inspection device pin length setting

Features 03

Traceability

Like conventional inspection machines, it can be connected to the optional "CatchSystem" to ensure traceability of inspection results.
3D images taken during the examination can also be checked later.

Circuit board visual inspection equipment traceability
OPTION

OPTION

We offer options to help you get the most out of your inspection operations.
Please use this to reduce man-hours and improve quality.

CatchSystem

CatchSystem

The results obtained from the inspection are saved in a database and can be checked using images. By aggregating and analyzing the accumulated data, it is possible to understand the operating status of each device, reduce defects, and improve production quality.
The Catch System collects all information from inspection equipment and establishes traceability in production management.
* Separate Windows PC required

Offline Teaching

Offline Teaching

Inspection data can be created without stopping the inspection equipment. Inspection data can be created offline on the same screen as the inspection equipment.

Immediately after inspection, defective images are automatically saved, allowing debugging work to be performed on the OLT (not applicable to the X02W).
It can also be used for in-house training purposes.
*A separate PC equivalent to the inspection machine is required.

OPERATION

Operational image

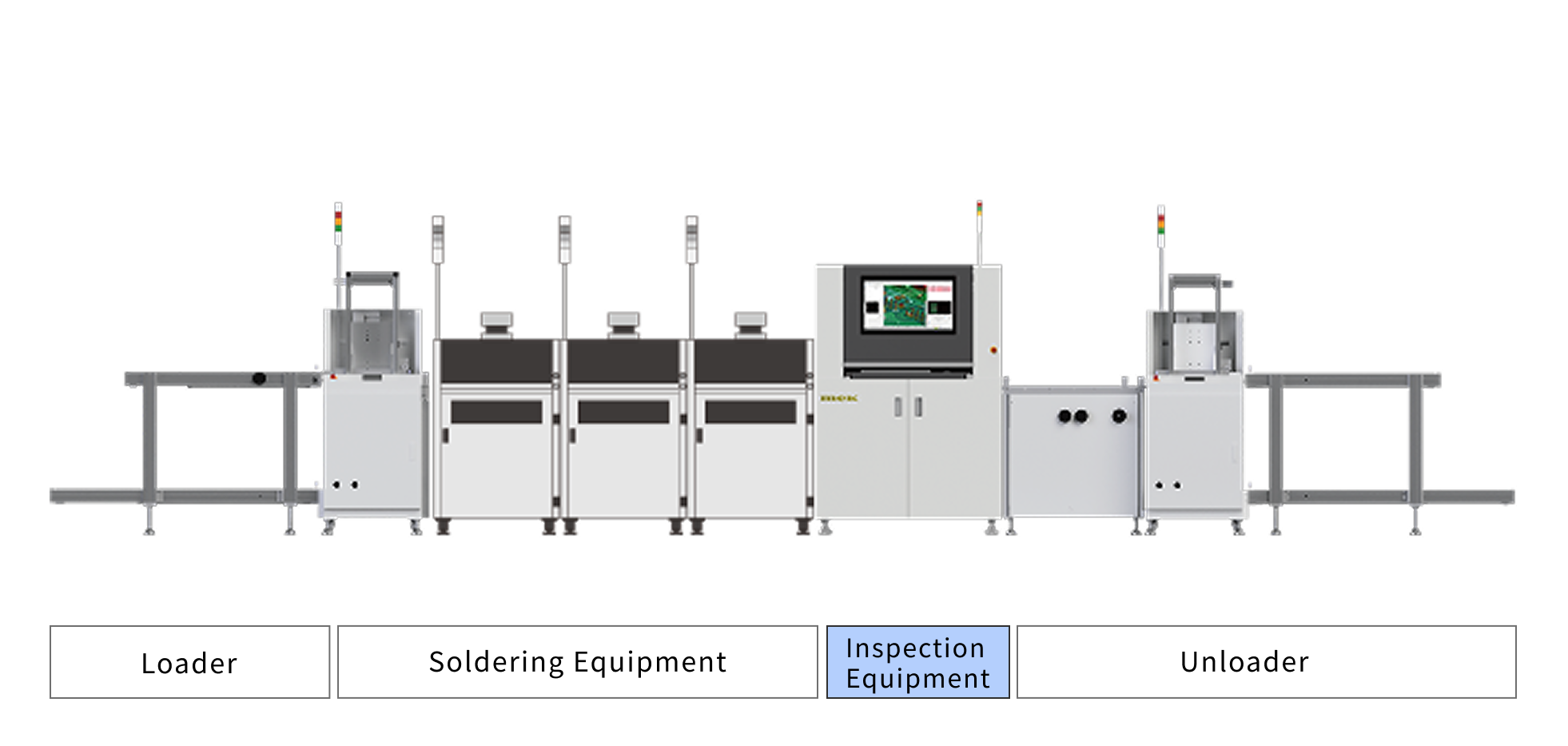

High-precision automatic inspection ensures stable quality

It is possible to inspect the board downstream of the DIP soldering machine without having to turn it over.
By combining it with Marantz Electronics loaders and unloaders, automatic width adjustment is possible when changing models, which contributes to reducing the man-hours required for changeovers.

Underside full 3D inspection device operation image (en)
SPECIFICATION

Specification.

PCB appearance inspection device, bottom surface full 3D inspection device X02W series
X02WB-350
PCB appearance inspection device, bottom surface full 3D inspection device X02W series
X02WB-550L
External dimensions
W980 x D998 x H1210mm
W1200 x D1220 x H1750 (mm)
Body weight
210 kg
500kg
Power
AC100V - 240V
AC100V - 240V
Applicable board size
Mini: 50 x 50 mm Max: 350 x 250 mm
Mini:X50 Y50mm Max:X550 Y550mm
Board Weight
1.5 kg
2.0kg
Implementation Limitations
Top: 150 mm, bottom: 150 mm (area sensor)

Top surface: 100 mm, bottom surface: 150 mm (automatic opening/closing door)
Top surface: 50mm, bottom surface: 40mm
Camera
9 Mega pixel top camera
9 Mega pixel top camera
lens
Telecentric lens
Telecentric lens
Lens resolution
19 μm
19μ
Field of view
60 x 60 mm
60 × 60 mm
Light
White lighting (dedicated 3D lighting)
White lighting (dedicated 3D lighting)
Height measurement
±6 mm from the reference plane (maximum 12 mm above the board)
Measurement accuracy ±20 µm
±6mm from the reference plane (maximum 12mm on the board)
Measurement accuracy: ±20µm
