Entry model
V series
- Inline types
- Desktop types
Product Introduction
- Tabletop and inline models available
- Z-axis is standard equipment. Even tall parts can be inspected with optimal focus.
- Equipped with a camera pixel count and telecentric lens equivalent to that of higher-end models
- Establish traceability of inspection results by introducing the CatchSystem (optional)
Inspection Examples
Here is an example of what can be inspected with this device. We also accept requests for verification using sample boards.
Part presence/misalignment
Polarity Inspection
Character inspection
Foreign body inspection
SMT solder inspection
IC Bridge
Solder ball
Barcode scan
DIP solder inspection
DIP Bridge
Presence of PIN
Solderless

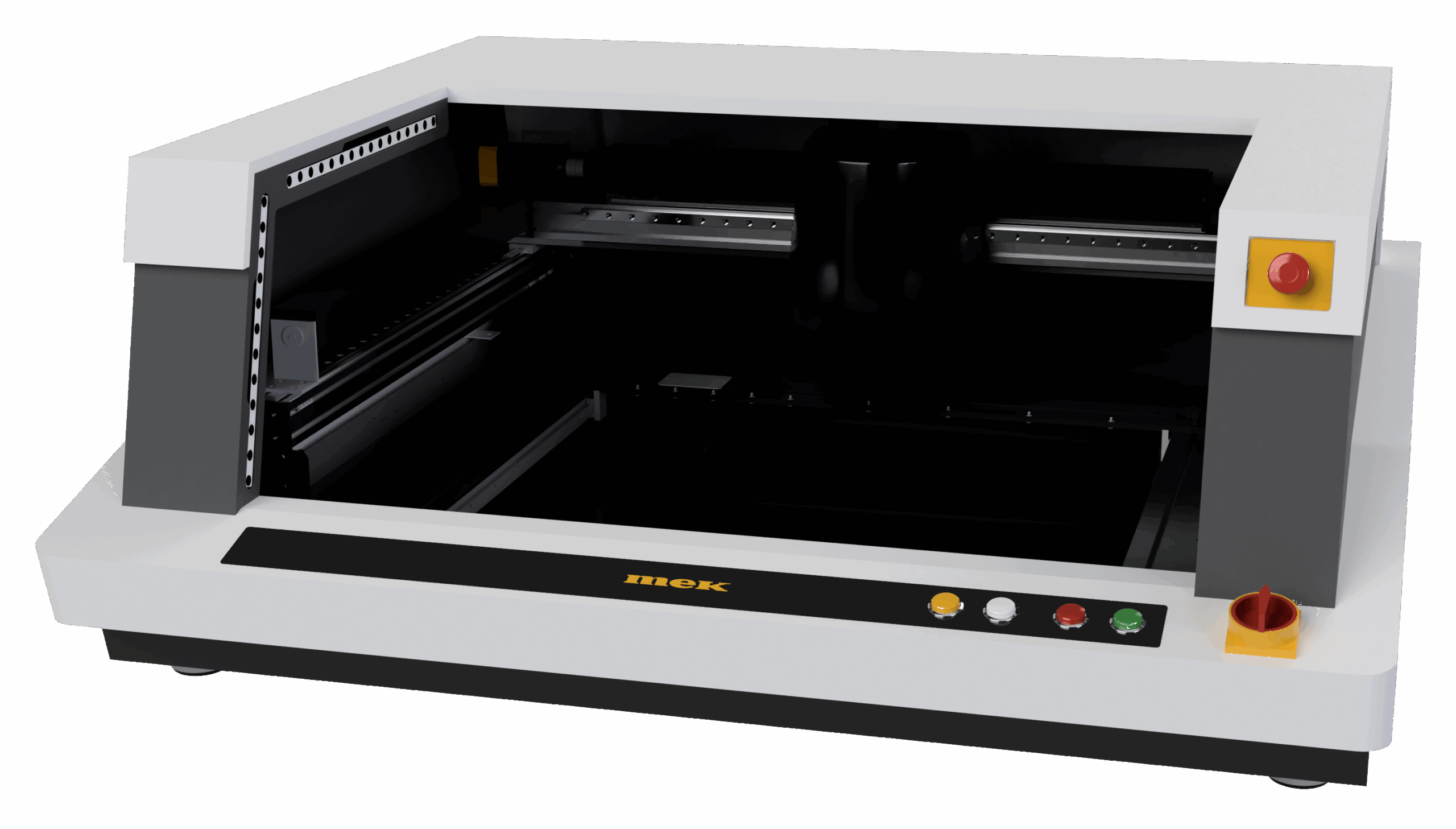

Desktop types
A desktop type that can easily handle small-lot, multi-product inspections.
The installation method is simple and can flexibly accommodate changes to the factory layout.
We also offer a dedicated stand (optional), which can solve the problem of selecting a table.
- Inspection range of L size (520 x 460 mm)
- The inspection head moves in the XY direction and does not move the board, making it ideal for inspecting inserted components before flow soldering and for heavy boards.
- An area sensor is installed as standard at the board set entrance to ensure worker safety.
V22X-520Inline types
Ideal for pre-reflow component inspection (0402 size and above). Early defect detection contributes to quality improvement.
By utilizing offline teaching (optional), program data can be created and real-time debugging can be performed even during production.
- Inspection range for M size (350 x 250 mm)
- Automatic conveyor width adjustment is supported as standard when switching programs
- Supports automatic model switching by reading barcodes
V22X-350LFeatures
Features 01
Inheriting easy operation through the adoption of 22X software
By adopting the same inspection machine control software "22X software" as other models, it inherits the easy-to-use operability and allows the same inspection settings as other models.
It can be linked with the production management and support software CatchSystem.
Features 02
Ideal for replacing conventional machines
M22XDL model, M22XCL model, M22Xfw model, M22Xfv series,
We have finished it so that even customers who have used it before will be satisfied.
OPTION
We offer options to help you get the most out of your inspection operations.
Please use this to reduce man-hours and improve quality.
CatchSystem
The results obtained from the inspection are saved in a database and can be checked using images. By aggregating and analyzing the accumulated data, it is possible to understand the operating status of each device, reduce defects, and improve production quality.
The Catch System collects all information from inspection equipment and establishes traceability in production management.
* Separate Windows PC required
Offline Teaching
Inspection data can be created without stopping the inspection equipment. Inspection data can be created offline on the same screen as the inspection equipment.
Immediately after inspection, defective images are automatically saved, allowing debugging work to be performed on the OLT (not applicable to the X02W).
It can also be used for in-house training purposes.
*A separate PC equivalent to the inspection machine is required.

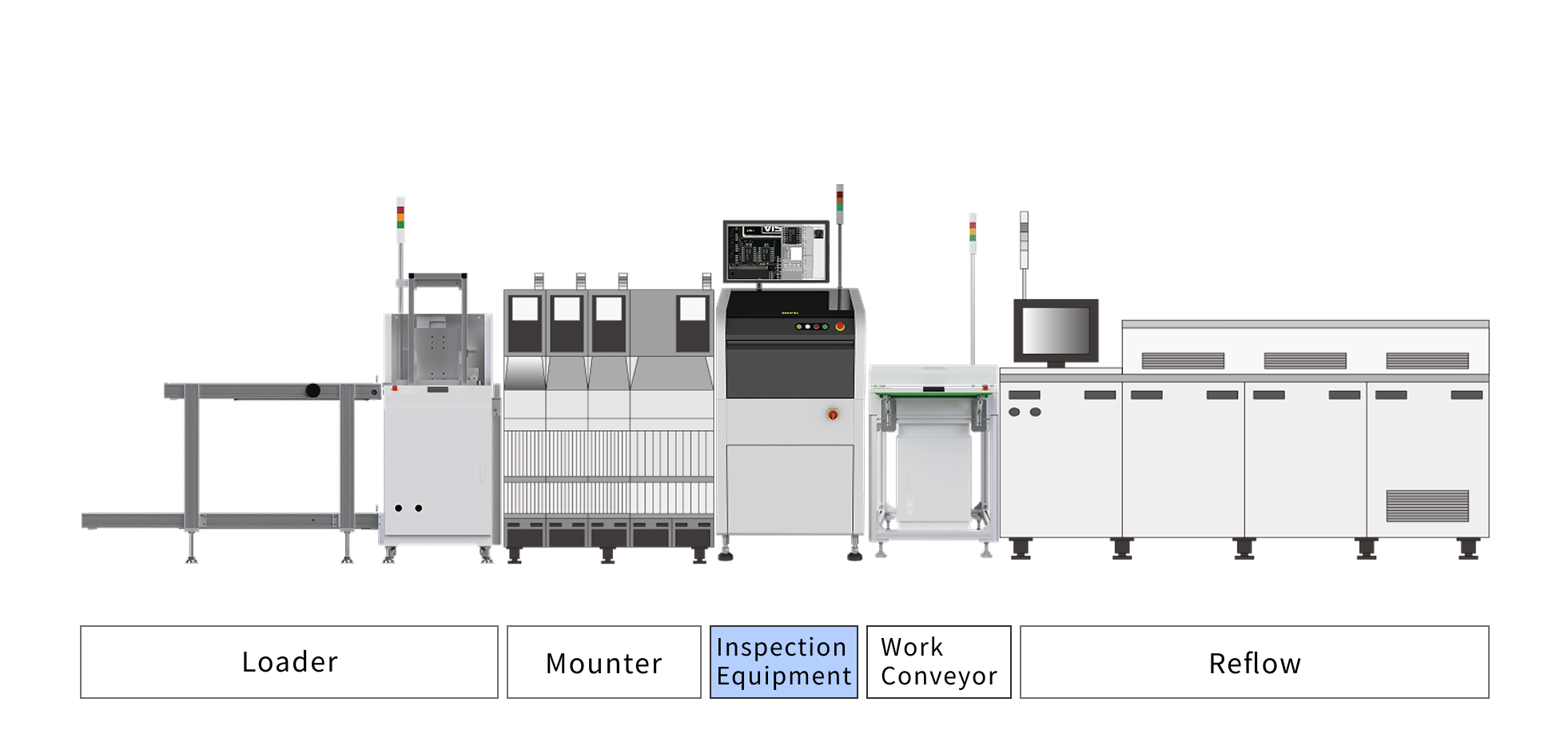

Operational image
Ideal for pre-reflow inspection
When used for component inspection (missing parts, misalignment, polarity, characters), it can contribute to quality improvement by detecting and correcting mounting defects early.
By connecting with conveyors manufactured by Marantz Electronics, it is possible to automatically link rail width and length and automatically change models linked to barcodes.
Specification.
V22X-520
|
V22X-350L
|
|
External dimensions | W1030 x D1060 x H410mm | W698 x D800 x H1298mm |
Body weight | 95 kg | 210 kg |
Power | AC 100V - 240V | AC 100V - 240V |
Implementation Limitations | Top 40mm Bottom 70mm | Top 40mm Bottom 60mm |
Camera | 5M | 5M |
lens | Telecentric lens | Telecentric lens |
Field of view | 36 x 30 mm (15 μm) | 36 x 30 mm (15 μm) |
Light | DL lighting or ML lighting | DL lighting or ML lighting |
Inspection range | 520 x 460 mm | 350 x 250 mm |
Angle Camera | ー | ー |
Z-axis stroke | 30 mm | 30 mm |
Laser height measurement | ー | ー |
Power | 350 W | 350 W |
Conveyor Speed | ー | 10-500 mm/sec |
Inspection time | 0.3 sec/screen | 0.3 sec/screen |
