Built-in AOI
T Series
- Unit types
Product Introduction
- Build your own production equipment by incorporating robots into post-transport inspection and conveyors
- Using the input/output I/O, it is possible to issue operation instructions such as starting an inspection, and output OK/NG signals.
- Available in two sizes: M size (350 x 260 mm) and L size (550 x 460 mm)
- Establish traceability of inspection results by introducing the CatchSystem (optional)
Inspection Examples
Here is an example of what can be inspected with this device. We also accept requests for verification using sample boards.
Part presence/misalignment
Polarity Inspection
Character inspection
Foreign body inspection
SMT solder inspection
IC Bridge
Solder ball
Barcode scan
DIP solder inspection
DIP Bridge
Presence of PIN
Solderless
Features
Features 01
T series can be incorporated according to the application
The T Series can incorporate inspection units above, below, or both above and below the conveyor, depending on the application.
For example, heavy objects such as units incorporating circuit boards or castings can be inspected while still held in the robot's chuck.
OPTION
We offer options to help you get the most out of your inspection operations.
Please use this to reduce man-hours and improve quality.
CatchSystem
The results obtained from the inspection are saved in a database and can be checked using images. By aggregating and analyzing the accumulated data, it is possible to understand the operating status of each device, reduce defects, and improve production quality.
The Catch System collects all information from inspection equipment and establishes traceability in production management.
* Separate Windows PC required
Offline Teaching
Inspection data can be created without stopping the inspection equipment. Inspection data can be created offline on the same screen as the inspection equipment.
Immediately after inspection, defective images are automatically saved, allowing debugging work to be performed on the OLT (not applicable to the X02W).
It can also be used for in-house training purposes.
*A separate PC equivalent to the inspection machine is required.

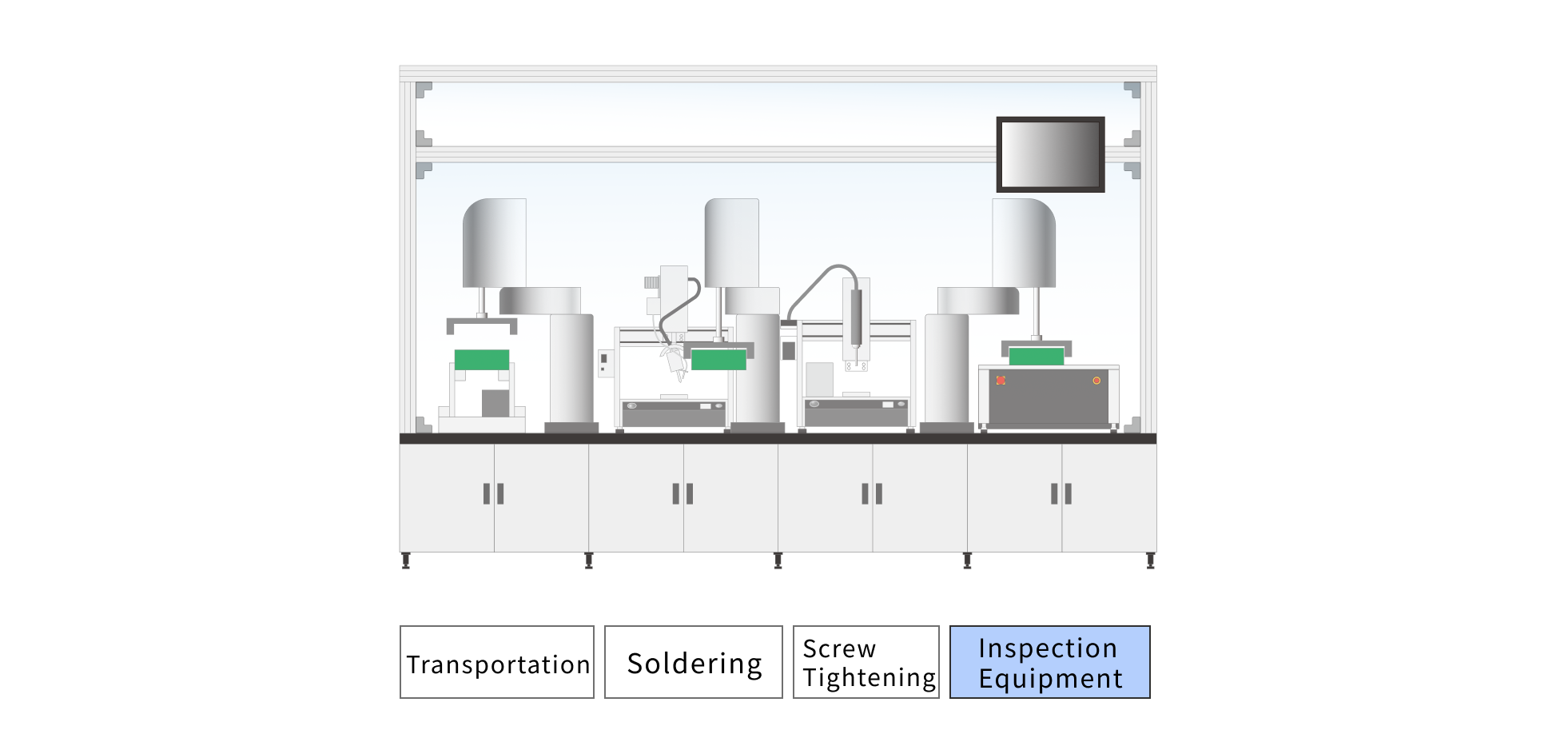

Operational image
Contributing to systemization
It can be installed in any process, such as bottom surface inspection after flow soldering, or double-sided inspection of the component surface and solder surface.
It can also be used for custom-made unitized lines.
Specification.
T22XB-350
|
T22XB-550
|
|
External dimensions | W700 x D880 x H316mm | W900 x D1080 x H316mm |
Body weight | 50 kg | 75 kg |
Implementation Limitations | ー | ー |
Camera | 5M | 5M |
lens | Telecentric lens | Telecentric lens |
Field of view | 36 x 30 mm (15 μm) | 36 x 30 mm (15 μm) |
Light | DL lighting or ML lighting | DL lighting or ML lighting |
Inspection range | 350 x 260 mm | 550 x 460 mm |
