Both sides simultaneous
D Series
- Inline types
It is ideal for final inspection of not only surface-mounted components but also discrete boards.
Product Introduction
- The upper and lower units are equipped with an 8-angle camera and Z axis as standard.
- No need for a turnover machine, consolidating two inspection machines into one contributes to shortening the line length
- Automatic model and width switching by reading product barcodes
- Establish traceability of inspection results by introducing the CatchSystem (optional)
- By simply scanning the barcode on one side of the board, traceability on both sides is possible.
Inspection Examples
Here is an example of what can be inspected with this device. We also accept requests for verification using sample boards.
Part presence/misalignment
Polarity Inspection
Character inspection
Foreign body inspection
SMT solder inspection
IC Bridge
Solder ball
Barcode scan
DIP solder inspection
DIP Bridge
Presence of PIN
Solderless
Features
Features 01
Equipped with a total of 8 cameras, consisting of two units: a main camera and an 2-way angle camera
As the name suggests, this double-sided simultaneous inspection machine inspects both the top and bottom surfaces of the board simultaneously.
By installing two sets of high-performance camera units, one for the top surface and one for the bottom surface, which realize the imaging technology we have cultivated over the years, we can inspect two surfaces simultaneously in one inspection.
Features 02
Two monitors allow for easy checking of the top and bottom surfaces
The right monitor displays the top side of the board, and the left monitor displays the bottom side of the board, making it easy to check the status of both sides without switching screens.
A single mouse and keyboard provides seamless operation.
Features 03
Shortened inspection takt time, reduced PCB stress, space saving, energy saving
- Double-sided inspection can be completed in one inspection, shortening the inspection takt time and improving productivity.
・Reduces stress on the board by reducing man-hours
・No need for a turnover machine, reducing the number of inspection machines and contributing to energy savings
OPTION
We offer options to help you get the most out of your inspection operations.
Please use this to reduce man-hours and improve quality.
CatchSystem
The results obtained from the inspection are saved in a database and can be checked using images. By aggregating and analyzing the accumulated data, it is possible to understand the operating status of each device, reduce defects, and improve production quality.
The Catch System collects all information from inspection equipment and establishes traceability in production management.
* Separate Windows PC required
Offline Teaching
Inspection data can be created without stopping the inspection equipment. Inspection data can be created offline on the same screen as the inspection equipment.
Immediately after inspection, defective images are automatically saved, allowing debugging work to be performed on the OLT (not applicable to the X02W).
It can also be used for in-house training purposes.
*A separate PC equivalent to the inspection machine is required.

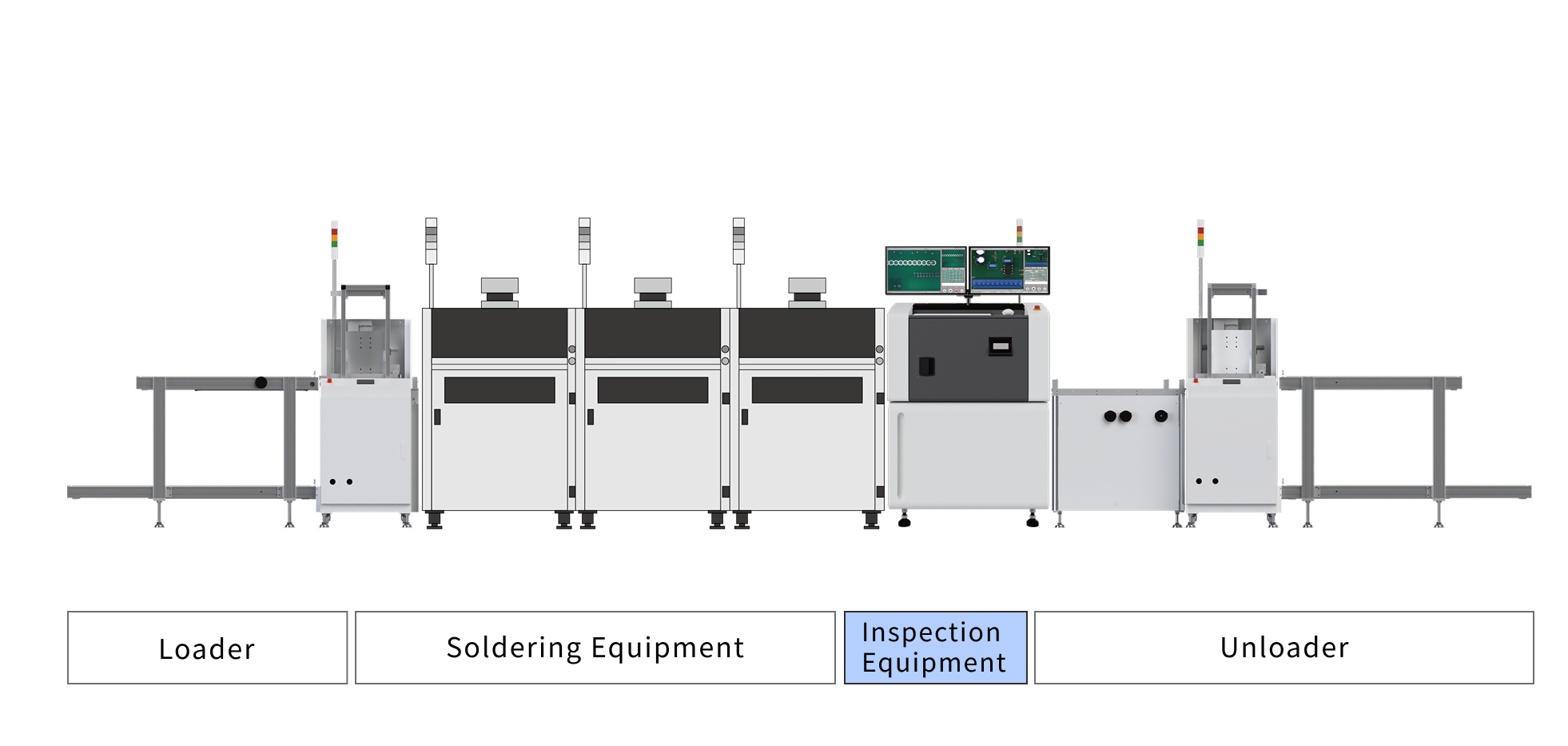

Operational image
Ideal for DIP final inspection
It can inspect inserted components and DIP solder surfaces simultaneously at high speed.
This is expected to improve the reliability of the entire production and also make it possible to maintain quality. This device will enhance quality control in board mounting and significantly improve production efficiency.
Specification.
D22X-350LH
|
D22X-550LH
|
|
External dimensions | W878 x D910 x H1316mm | W1078 x D1216 x H1329mm |
Body weight | 270 kg | 430 kg |
Power | AC100V-240V | AC100V-240V |
Implementation Limitations | Top surface: 30 mm Bottom surface: 20 mm | Top surface: 30 mm Bottom surface: 20 mm |
Camera | 5M | 5M |
lens | Telecentric lens | Telecentric lens |
Field of view | 36 x 30 mm | 36 x 30 mm |
Light | DL lighting or ML lighting | DL lighting or ML lighting |
Inspection range | 350 mm x 250 mm | 550 mm x 550 mm |
Angle Camera | ○ | ○ |
Z-axis stroke | ○ | ○ |
Laser height measurement | ー | ー |
Power | 700 W | 700 W |
Conveyor Speed | 10-500 mm/sec | 10-500 mm/sec |
Inspection time | 0.3 sec/screen | 0.3 sec/screen |
